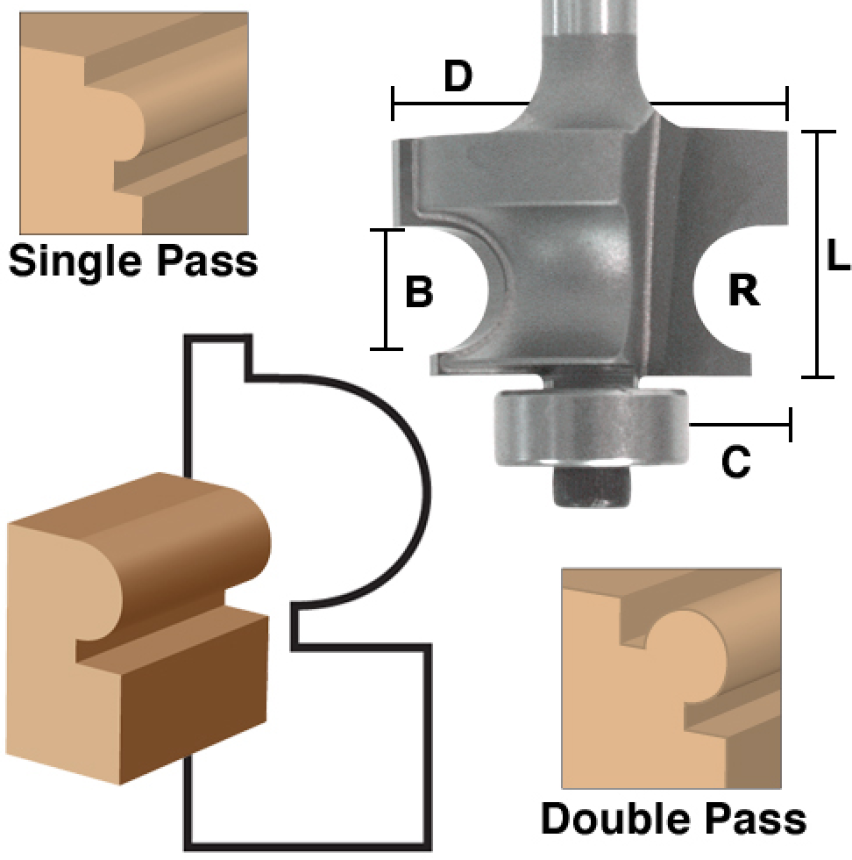

Specifications
(B) Bead Length: 3/16"
(D) Large Diameter: 7/8"
(R) Radius: 3/32"
(C) Cutting Depth: 3/16"
(L) Cutting Length: 9/16"
Overal Length: 2-1/4"
Shank: 1/4"
Eagle America Square Edge 3/16" Bead Router Bits gives you 3 profiles that can be used to match that existing bead molding trim found in older homes.
Also called Quirk Bead bits.
. Note: Two passes are required to form a completely rounded corner bead.
All bits two flute, carbide tipped with bearing guides.
Made in the USA. .
(B) Bead Length: 3/16". .
(D) Large Diameter: 7/8". .
(R) Radius: 3/32". .
(C) Cutting Depth: 3/16". .
(L) Cutting Length: 9/16". .
Overal Length: 2-1/4". .
Shank: 1/4". .The Eagle America Difference:
The Eagle America Brand was created for the professional woodworker who needs a serious router bit with an exceptional cut, extremely high durability and longevity.
Lifetime Warranty against defects in workmanship and materials.
Precision ground carbide to +/- .005 tolerances and Balanced to speeds in excess of 25,000 RPM for true, chatter-free running.
High hook and relief shear angles with wide open gullets for easy chip ejection.
Single-piece, SOLID STEEL Bodies, not just a mere sand casting.
Finest Micrograin Carbide up to C-4 grade with tips up to 1/8" thick for longer life.
Shielded, high-RPM-rated bearings have special lubricants for mar-free routing.
Carbide honed with a 600 grit diamond wheel to a razor sharp mirror finish edge.
Steel is heat treated up to 3 times, and tested up to 45 RC hardness to guarantee against breakage.
Precision-ground shanks.
