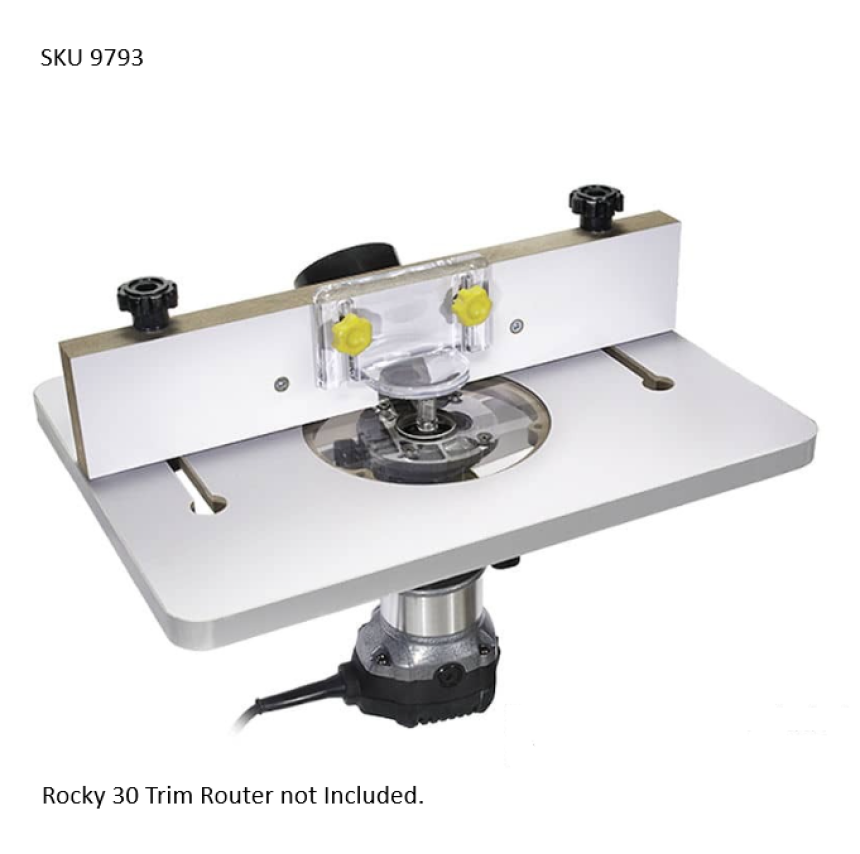

MLCS Trim Router Table
Need Product Support?
1.800.533.9298
MLCS Trim Router Table compact design is perfect for small routing projects.
The trim router can be quickly pulled out from the table for hand held use.
Perfect for Rocky 30 or Makita Trim Routers.
Features:
The 15-5/8" x 11-3/4", 5/8" thick tabletop has an MDF core, durable melamine surface, and polyethylene edge banding.
With Router Mounting Plate, Fence, and Dust Port.
5-3/4" diameter clear acrylic router mounting plate is included. The center hole is designed to accept 1-3/8" diameter template guide bushings.
Leveling screws allow you to adjust the router insert plate flush with the tabletop.
The table can be clamped to your work surface or screwed into position on the work surface using the three countersunk holes near the back edge of the tabletop.
The router mounting plate is drilled to accept the Rocky 30 Trim Router, or can be drilled to accommodate other brands of trim routers.
Fence Features:
15-1/2" wide, one-piece fence stands 2-7/8" tall. The fence position is adjusted via keyhole slots machined in the tabletop.
The fence includes a 2-1/2" OD dust extraction port and an adjustable height router bit guard to enhance safety.
Note: Rocky 30 Trim Router not included. Product #2388 includes both MLCS Trim Router Table and Rocky 30 Trim Router.
