1/4" Core Box Router Bits 1/4" CL x 1/4" shank | MLCS
Need Product Support?
1.800.533.9298

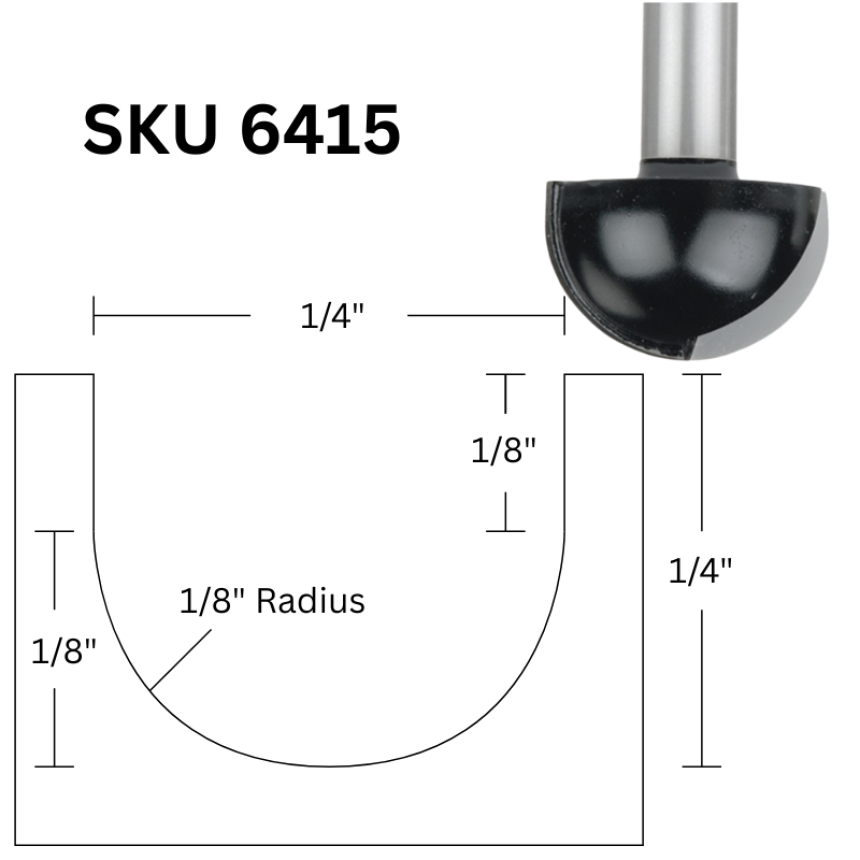

Specifications
(D) Large Diameter: 1/4"
(R) Radius: 1/8"
(L) Cutting Length: 1/4"
Overall Length: 1-1/2"
Shank Size: 1/4"
MLCS 1/4" Core Box Router Bits creates a semi-circular groove or channel in a workpiece.
The bit has a rounded, U-shaped cutting edge that is designed to carve out a groove with a consistent radius.
The groove can be used to add a decorative edge to a table or shelf, or to create a channel for a cable or wire to pass through.
The resulting groove will be smooth and consistent, with a rounded bottom that matches the shape of the bit.
Designed for reeding, fluting, veining, grooving or add a round bottom detail.
Will plunge cut in soft or hard woods as well as composition materials.
2 flute, carbide tipped.
(D) Large Diameter: 1/4".
(R) Radius: 1/8".
(L) Cutting Length: 1/4".
Overall Length: 1-1/2".
Shank Size: 1/4".
The MLCS Difference
The MLCS Brand was created for the cost conscience woodworker who needs a quality router bit that has a very good cut, good durability, good longevity but still has a great price.
3 Year Warranty against defects in workmanship and materials.
Bits are milled from solid steel bodies and are precision ground by CNC machines to tolerances of +/-.005.
Carbide tips are diamond honed up to a 400-grit for a mirror finish with razor sharp edges.
High hook and shear angle designs are used to allow the bits to slice through the wood for a clean, fast and chatter free chip removal.
Anti-Kickback safety designs are used in bits that are 3/4" in diameter or greater.
Bodies are heat treated for strength and durability.
Non-stick PTFE coating applied to prevent pitch and resin build-up.
PRICE - These bits are up to 70% less then you will find elsewhere.
