1-1/8" Butterfly Spline Router Bits | EAGLE AMERICA

SKU # 191-1205
$
In Stock

Return Policy

Need Product Support?

1.800.533.9298

Full Description Below...

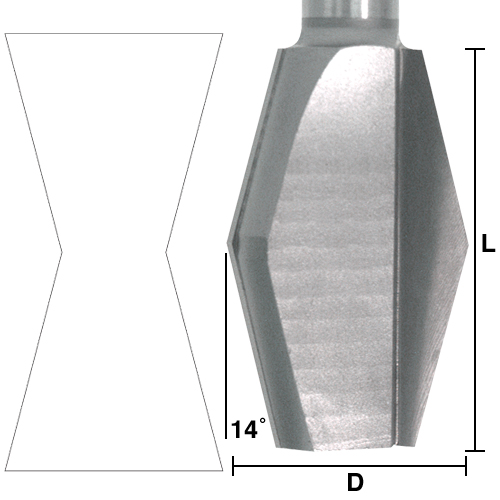

Specifications

Spline Size: 1/2" to 1-1/8"

(D) Large Diameter: 3/4"

(L) Cutting Length: 1-1/8"

Overall Length: 2-1/2"

Shank Size: 1/2"


Eagle America 1-1/8" Butterfly Spline Router Bits are 14° and are designed to make strong butterfly spline glue joints, extension table slides and decorative butterfly inlays.

Use these bits in conjunction with our 1/2" to 1" diameter 14° dovetail bits to cut the slots.

Two flute, carbide tipped.

Made in the USA.

Spline Size: 1/2" to 1-1/8".

(D) Large Diameter: 3/4".

(L) Cutting Length: 1-1/8".

Overall Length: 2-1/2".

Shank Size: 1/2".


The Eagle America Difference:

The Eagle America Brand was created for the professional woodworker who needs a serious router bit with an exceptional cut, extremely high durability and longevity.

Lifetime Warranty against defects in workmanship and materials.

Precision ground carbide to +/- .005 tolerances and Balanced to speeds in excess of 25,000 RPM for true, chatter-free running.

High hook and relief shear angles with wide open gullets for easy chip ejection.

Single-piece, SOLID STEEL Bodies, not just a mere sand casting.

Finest Micrograin Carbide up to C-4 grade with tips up to 1/8" thick for longer life.

Shielded, high-RPM-rated bearings have special lubricants for mar-free routing.

Carbide honed with a 600 grit diamond wheel to a razor sharp mirror finish edge.

Steel is heat treated up to 3 times, and tested up to 45 RC hardness to guarantee against breakage.

Precision-ground shanks.
