Specifications
Profile: Cove
Type: 3-Wing w/Backcutter
Height of Cut (B): 5/8"
Depth of Cut (C): 1-7/16"
Large Diameter: 3-3/8"
Eagle America Cove Raised Panel Router Bits with Back Cutter makes attractive drawer fronts, table tops, plaques and moldings.
Great for both square and arch (cathedral) door patterns.
Manufactured with a shear angle to produce optimum cuts both with and across the grain.
The material size you select will affect how much upper bead profile you will achieve.
A ball bearing guide allows you to follow a pattern.
The carbide tipped bit features an anti-kickback design which controls the cutting edge's depth of cut. The cutter cannot pull into the piece, giving you better control.

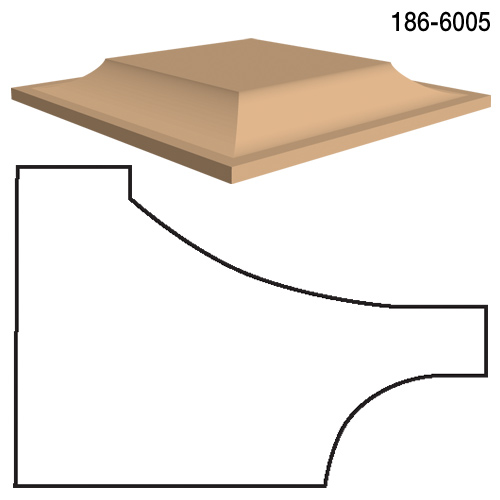

NOTE: Beige area on illustrations denotes what you loose with 5/8" material or use with back cutter.
For 5/8" to 1 stock.
Profile: Cove - 3-Wing with Back Cutter.
Large Diameter: 3-3/8".
Cutting Depth: 1-7/16".
Cut Height: 5/8".
Shank: 1/2".
All bits two flute, carbide tipped with bearing guides.
Made in USA.
The Eagle America Difference:
The Eagle America Brand was created for the professional woodworker who needs a serious router bit with an exceptional cut, extremely high durability and longevity.
Lifetime Warranty against defects in workmanship and materials.
Precision ground carbide to +/- .005 tolerances and Balanced to speeds in excess of 25,000 RPM for true, chatter-free running.
High hook and relief shear angles with wide open gullets for easy chip ejection.
Single-piece, SOLID STEEL Bodies, not just a mere sand casting.
Finest Micrograin Carbide up to C-4 grade with tips up to 1/8" thick for longer life.
Shielded, high-RPM-rated bearings have special lubricants for mar-free routing.
Carbide honed with a 600 grit diamond wheel to a razor sharp mirror finish edge.
Steel is heat treated up to 3 times, and tested up to 45 RC hardness to guarantee against breakage.
Precision-ground shanks.
