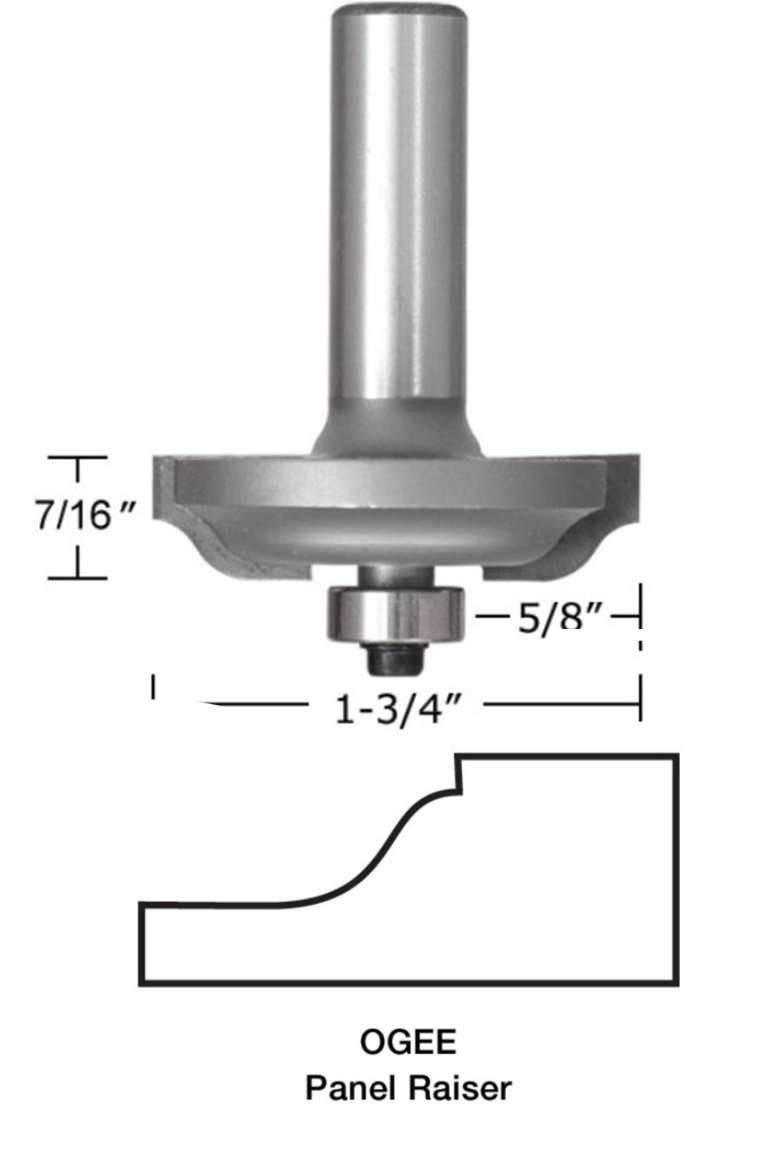

Specifications
Profile: Ogee
Cut Height: 7/16"
Large Diameter: 1-3/4"
Cut Depth: 5/8"
Eagle America Ogee Raised Panel Router Bits make reduced ogee profile raised panels.
1/2" shank.
Two flute and carbide tipped with ball bearing guides.
Cut Height: 7/16".
Large Diameter: 1-3/4".
Cut Depth: 5/8".
The Eagle America Difference:
The Eagle America Brand was created for the professional woodworker who needs a serious router bit with an exceptional cut, extremely high durability and longevity.
Lifetime Warranty against defects in workmanship and materials.
Precision ground carbide to +/- .005 tolerances and Balanced to speeds in excess of 25,000 RPM for true, chatter-free running.
High hook and relief shear angles with wide open gullets for easy chip ejection.
Single-piece, SOLID STEEL Bodies, not just a mere sand casting.
Finest Micrograin Carbide up to C-4 grade with tips up to 1/8" thick for longer life.
Shielded, high-RPM-rated bearings have special lubricants for mar-free routing.
Carbide honed with a 600 grit diamond wheel to a razor sharp mirror finish edge.
Steel is heat treated up to 3 times, and tested up to 45 RC hardness to guarantee against breakage.
Precision-ground shanks.
